Base Saddle Click For Details

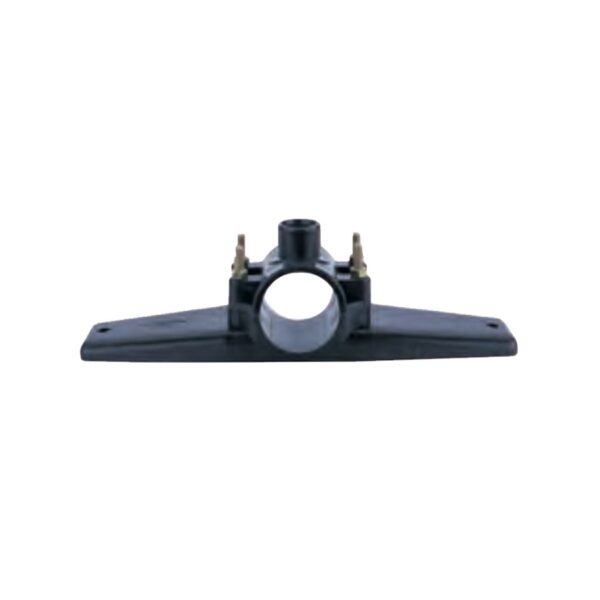

A saddle clamp, also known as a pipe clamp or a hose clamp variant, is a device designed to securely fit around an existing pipe or tube. It features a saddle-shaped body that wraps around the pipe and a clamping mechanism to secure it in place.
| Item | Specification |
|---|---|
| Product Name | Saddle Base |
| Application | Base support for modular or threaded outlets on irrigation pipes |
| Material | High-density polyethylene (HDPE) / Polypropylene |
| Color | Black or dark body with threaded opening |
| Pipe Compatibility | PE Pipes (Low & High Pressure) |
| Base Sizes | 25mm, 32mm, 40mm, 50mm, 63mm, etc. |
| Outlet Size | Usually ½”, ¾”, or 1″ (female threaded) |
| Installation | Fastened with bolts and rubber sealing ring |
| Seal Type | Rubber O-ring or gasket under the base |
| Usage | As a base for mounting valves, connectors, or drip lines |
| Pressure Rating | Typically 4 – 10 bar |
| Resistance | UV-resistant, chemical-resistant |
| Temperature Range | -10°C to +60°C |
