Coupling Click For Details

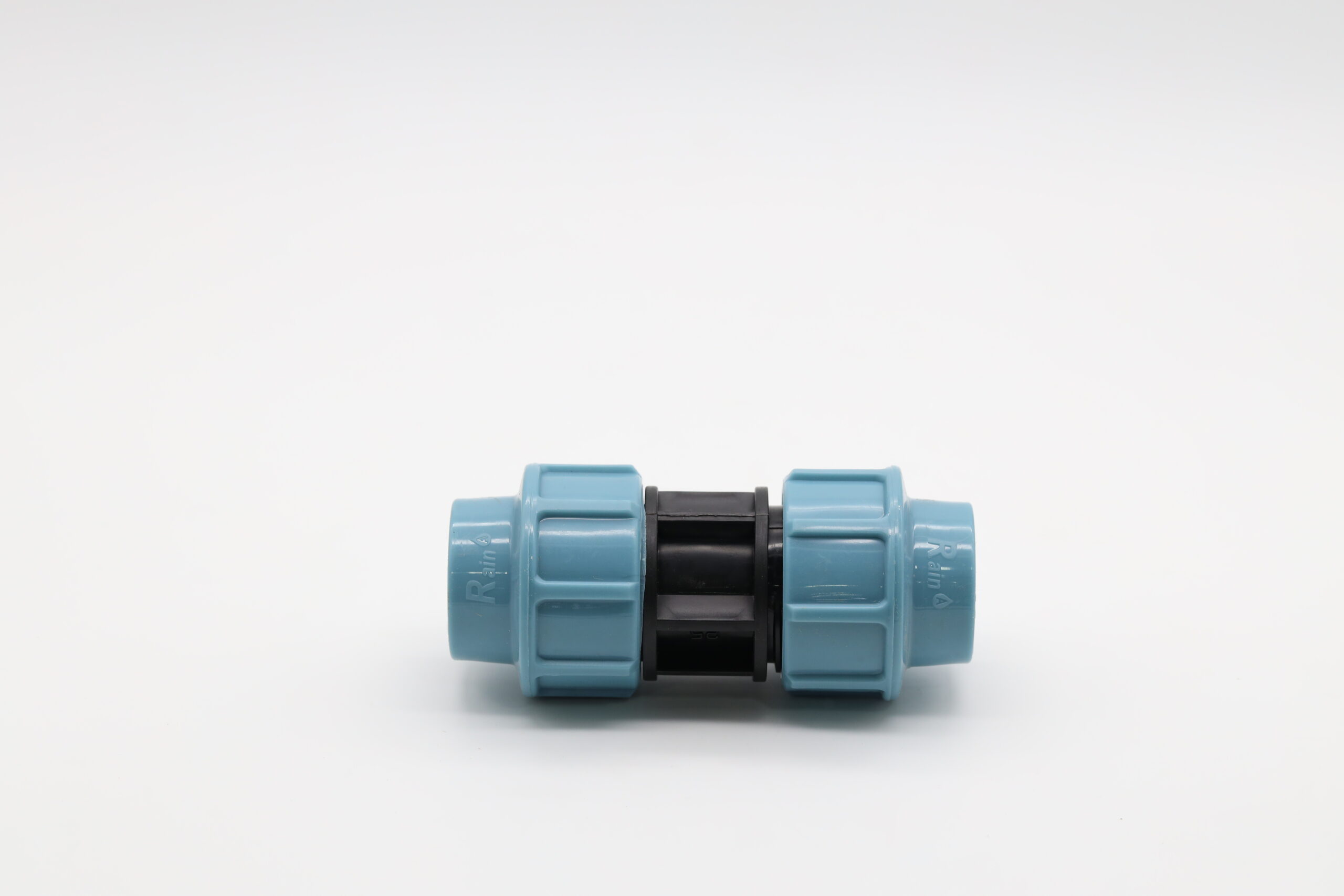

🔩 Plastic Compression Coupling – Simple, Secure Pipe Connections A plastic compression coupling is a reliable fitting used to join two plastic pipes or tubes, delivering a leak-proof connection without the need for soldering, gluing, or specialized tools. This coupling uses a compression ring (also known as an olive) housed between a threaded nut and the pipe body. As the nut is tightened, the ring compresses around the pipe, forming a secure and watertight seal.

📐 Size Compatibility: Available in standard pipe sizes ranging from 20mm to 110mm, depending on the system requirements.

NO	D (MM)
1	16×16
2	20×20
3	25×25
4	32×32
5	40×40
6	50×50
7	63×63
8	75×75
9	90×90
10	110×110

Key Features and Components:

Coupling Nut: A threaded nut that is tightened to compress the other components.
Compression Ring (Olive/Sleeve): A ring, typically made of plastic or metal, that deforms under pressure to create a seal.
Fitting Body: The main part of the fitting that the pipes slide into.
Sealing Ring: A rubber or elastomeric ring that provides an additional seal against leaks.
- Joins plastic pipes with a tight mechanical seal
- No adhesive or welding required
- Easy installation and removal
- Suitable for HDPE, MDPE, and other plastic pipe systems
- Ideal for irrigation, plumbing, and utility networks

How it Works:

The pipe ends are inserted into the fitting body, and the compression ring and nut are placed over the pipe.
As the nut is tightened, it compresses the compression ring against the pipe and the fitting body.
This compression creates a watertight seal between the pipe and the fitting.

-Advantages of Plastic Compression Fittings:
- Easy Installation:

  They are relatively simple to install and require no special tools or techniques like soldering or gluing.
- Versatile:

  They can be used with various plastic pipe materials and can handle a range of pressures and temperatures
