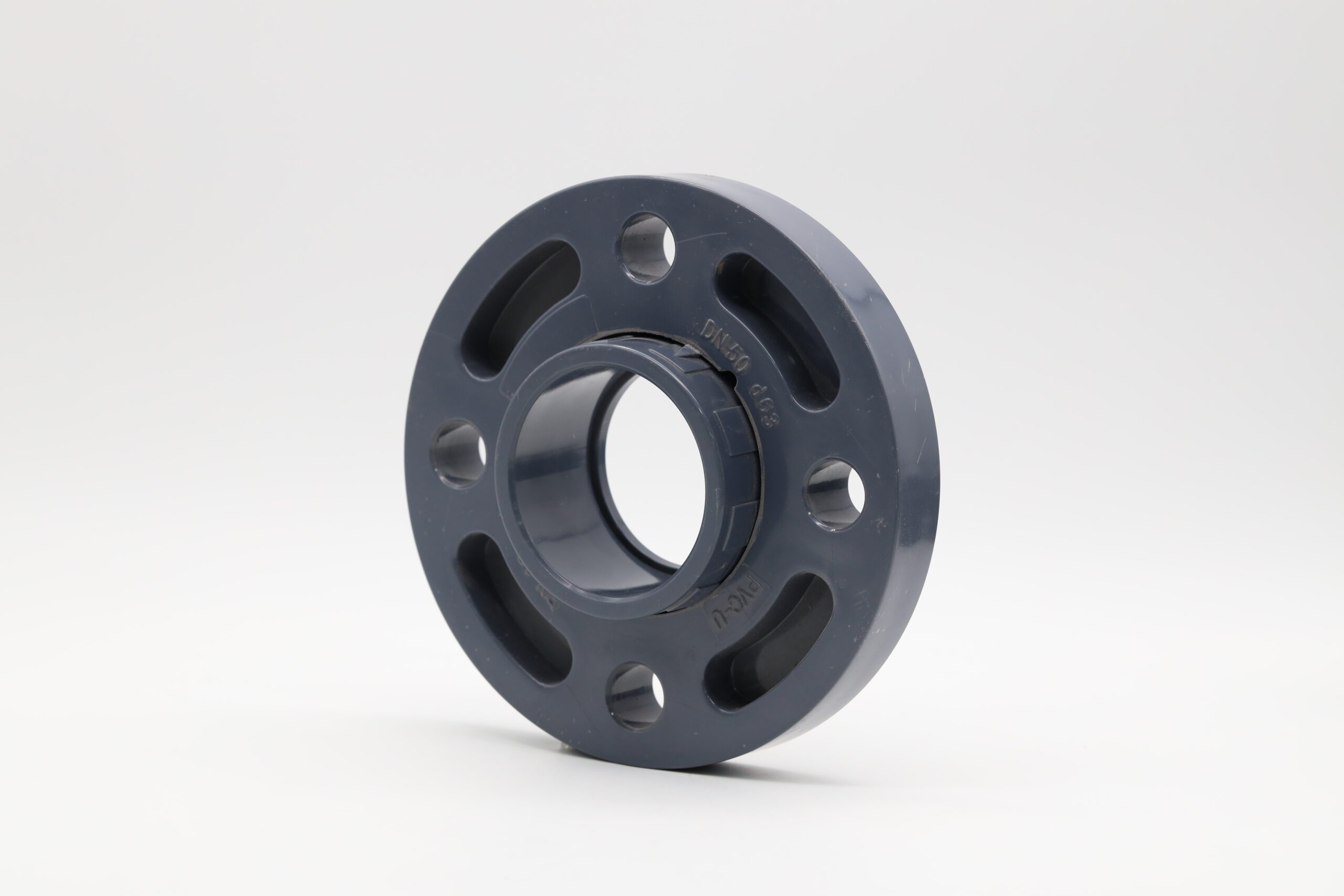

Flange Adaptor Click For Details

🛠️ Key Features

• Material: Made from high-quality PVC, often reinforced for durability
• Connection Type: One end fits over the PVC pipe (socket or spigot), the other end has a flange for bolting
• Pressure Ratings: Commonly available in PN 4 to PN 16 (kg/cm²) depending on size and application
• Sizes: Typically range from 20 mm to 63 mm in diameter
• Standards: Manufactured according to IS 10124, IS 7834, DIN 8063, ISO 1452, and company-specific standards

Typical Use:

• For easy disassembly and maintenance of piping systems.

• Commonly used in water treatment, chemical processing, and irrigation systems.

• 🧩 Installation Tips

  • Ensure proper alignment of the flange holes before tightening bolts
  • Use appropriate gaskets to prevent leaks
  • For high-pressure or vibration-prone systems, consider reinforced or anchored versions

  • 🧪 Applications

    • Used in water supply systems, irrigation, sewage, and industrial piping
    • Ideal for submersible column pipes and pumping mains

How it works:

1. The central hub is glued to the pipe.

2. The outer flange ring remains loose and rotates.

3. A gasket is placed between two flanges.

4. Bolts are used to connect to the mating flange.
