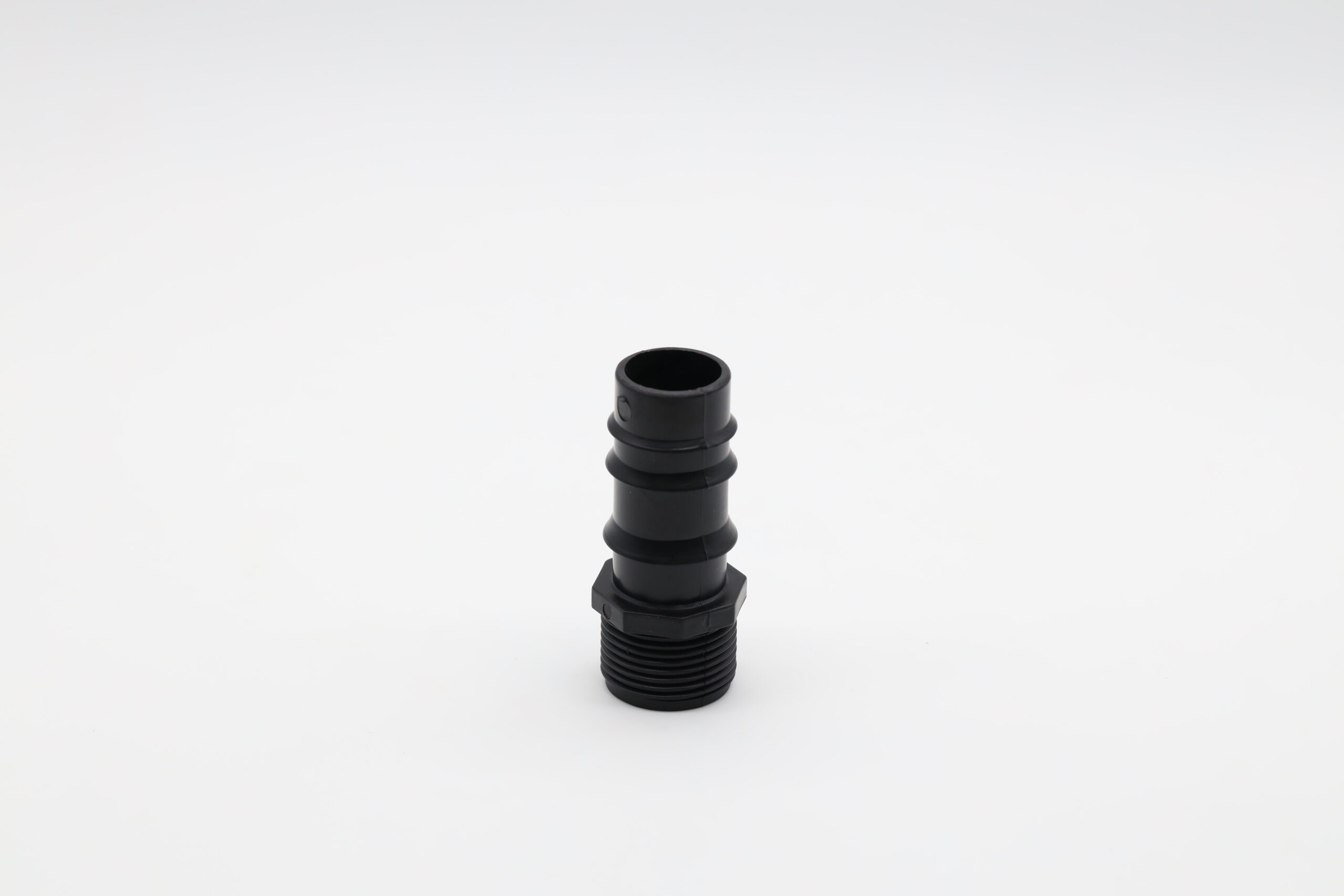

Connects irrigation tubing to threaded female fittings
| Barbed Size (mm) | Male Thread Size (inch) | Compatible Pipe/Tubing | Typical Application |
|---|---|---|---|
| 16 mm | ½” (1/2 inch) | 16 mm PE pipe / dripline | Connect tubing to filter, valve, or tee |
| 16 mm | ¾” (3/4 inch) | 16 mm PE pipe / dripline | Connect lateral line to threaded fitting |
| 20 mm | ½” or ¾” | 20 mm PE pipe | Medium-flow line connections |
| 25 mm | 1″ (1 inch) | 25 mm PE pipe | Mainline to threaded controller |
| 32 mm | 1¼” (1.25 inch) | 32 mm PE pipe | High-flow, large diameter systems |
Material: UV- and chemical-resistant polypropylene or polyethylene
Connection 1: Male Thread (BSP/NPT standard)
Connection 2: Barbed Insert – fits PE or LDPE pipes
Use: Interface between irrigation pipe and threaded devices (valves, filters, manifolds)
Sealing: Use Teflon tape on threads; hose clamp recommended for high pressure on barbed side
Pressure Rating: Up to 6–10 bar depending on size and material
