Sprinkler Click For Details

🌾 Specification Chart – Impact Sprinkler Head

Model Code Nozzle Size (mm) Spray Radius (m) Arc Range (°) Pressure Range (bar) Connection Material
IS-30 3.0 6–8 360° (Full circle) 2 – 3.5 ½” Thread UV-resistant plastic
IS-45 4.5 8–10 90°–360° (Adjust.) 2 – 4 ¾” Thread UV-resistant plastic
IS-60 6.0 10–12 20°–360° (Adjust.) 2.5 – 4 ¾” Thread UV-resistant plastic



Category:

🌾 Impact Sprinkler Head – Rotating Arm Irrigation Sprayer

Uniform Water Distribution for Fields, Lawns & Gardens

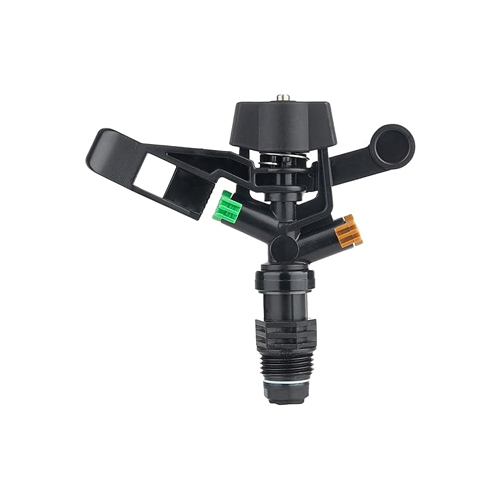

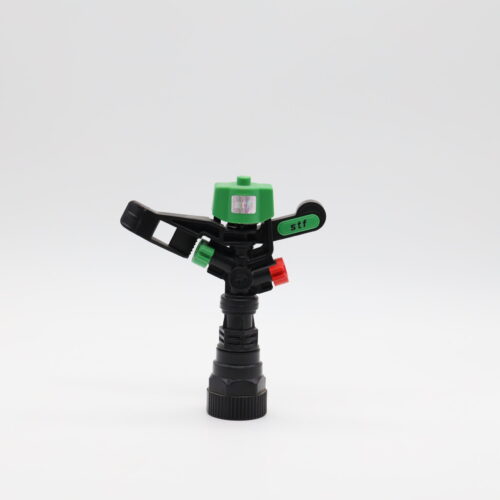

🎯 Description: This sprinkler uses the force of water to rotate its arm, delivering consistent pulses across a circular area. The black base, paired with green and orange adjustment tabs, allows users to fine-tune both spray range and arc. Its threaded bottom enables easy connection to risers or hose-mounted setups.

💧 Applications:

  • Lawn irrigation and landscaping
  • Agricultural field watering
  • Portable irrigation setups
  • Can be mounted on spikes, risers, or tripod stands

⚙️ Key Specifications:

  • Nozzle size options: typically 3mm to 6mm
  • Spray radius: up to 12 meters (depends on pressure)
  • Adjustable arc: full or part-circle (20°–360°)
  • Operating pressure: 2 – 4 bar
  • Connection: ½” or ¾” threaded base
  • Material: UV-stable plastic with corrosion resistance
