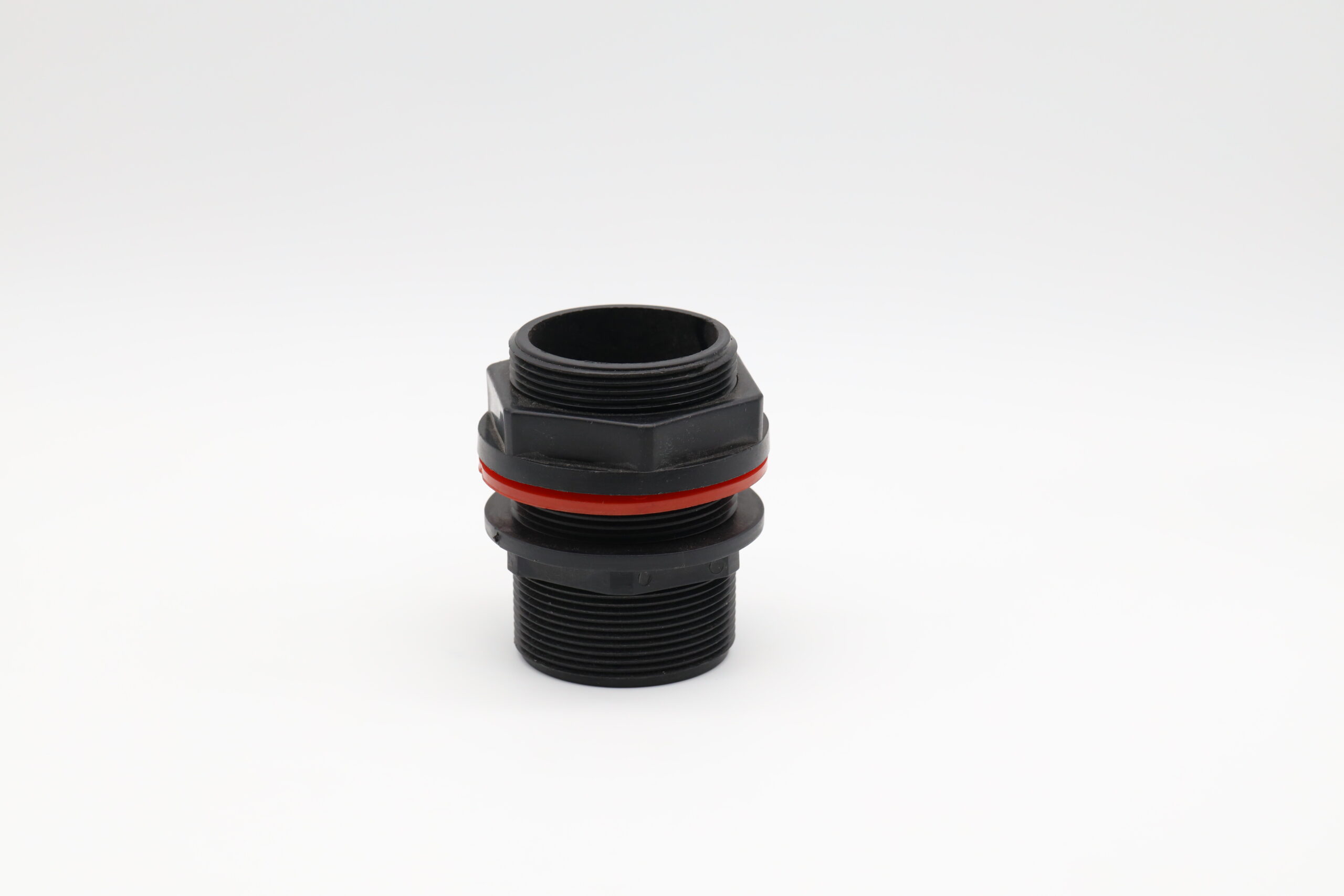

Tank Adaptor Barbed Click For Details

Tank Adaptor Barbed Click For Details

A barbed fitting tank adaptor is a component, often made of plastic or brass, used to connect tubing to a tank or other container. It features a barbed end that securely grips the inside of the tubing, creating a leak-resistant seal, and a threaded end that allows for attachment to the tank. These adaptors are commonly used in low-pressure applications like aquarium setups, water dispensing systems, and other fluid or gas transfer setups.

🚰 Tank Adaptor – Size Chart

Used to connect pipes or valves to water tanks or fertilizer tank

Adaptor Size (inch) Thread Type Hole Diameter Required (mm) Typical Application
½” Male / Female (BSP/NPT) ~22–25 mm Small tank outlets, filters
¾” Male / Female ~26–28 mm Garden tanks, small irrigation tanks
1″ Male / Female ~32–34 mm General-purpose irrigation or fertigation
1¼” Male / Female ~42–45 mm High flow tank outlets
1½” Male / Female ~48–52 mm Large-scale water transfer systems
2″ Male / Female ~60–65 mm Agricultural tanks, sump tanks, reservoirs
3″ Male / Female ~85–90 mm Industrial and heavy-duty applications
Category:

⚙️ Technical Specifications:

  • Material:

    • Polypropylene (PP), PVC, or HDPE

    • UV and chemical resistant

  • Design Options:

    • Male thread outside, female thread inside

    • With rubber gasket and nut for sealing

    • Bulkhead style with flange and tightening nut

  • Installation:

    • Drill hole in tank wall, insert adaptor, secure with gasket and nut

    • Connect valve or pipe on either side

  • Sealing:

    • Rubber or silicone gasket + compression nut

    • Optional Teflon tape on threads for added sealing

  • Pressure Rating:

    • Typically up to 6–10 bar, depending on size and material
