SOLLAR TECHNICAL TCE
1. Product Description

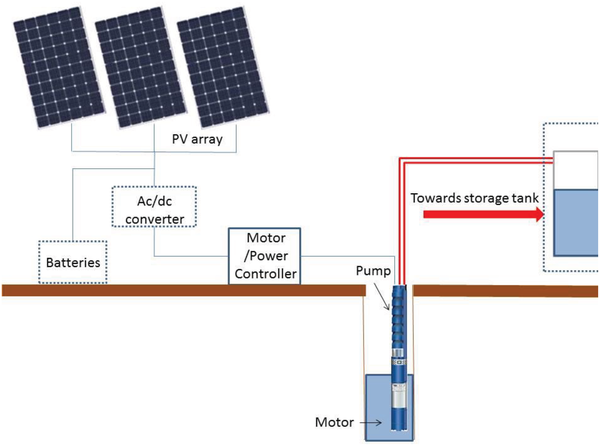

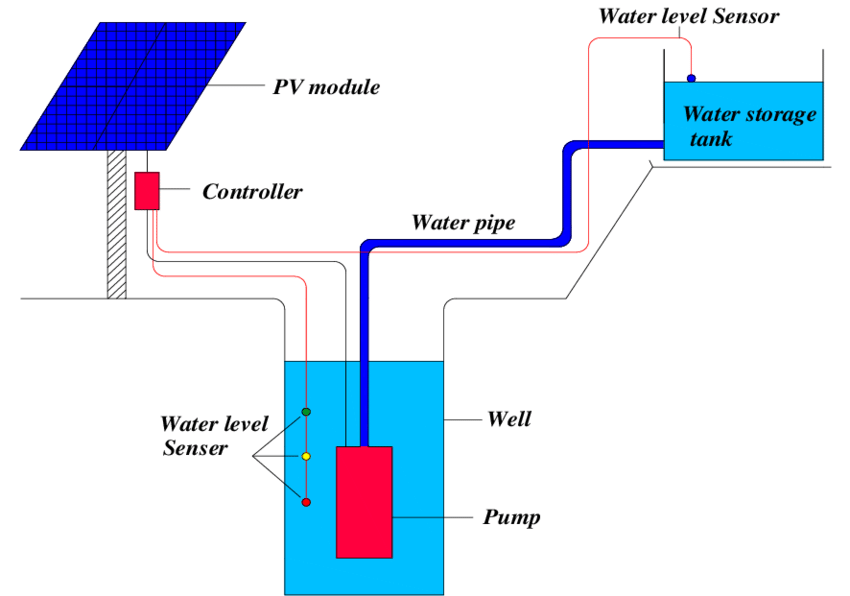

A solar water pump is an electrically powered pump driven by energy from photovoltaic (PV) solar panels. It’s used to lift water from wells, boreholes, rivers, or tanks for irrigation and livestock.
🔧 2. Technical Specifications
| Parameter | Typical Values / Range |
|---|---|
| Pump Type | Submersible or Surface (Centrifugal or Helical) |
| Power Rating | 0.3 kW – 5.5 kW (or higher) |
| Voltage | 12V / 24V / 48V / 72V / 110V / 220V DC or AC |
| Flow Rate | 1 – 30 m³/h (depending on model) |
| Head (Lift Height) | 10 – 120 meters |
| Max Suction Depth | For surface pumps: up to 8 meters |
| Motor Type | Brushless DC or AC asynchronous |
| Pump Efficiency | 35% – 65% (varies with type and head) |
| Pump Material | Stainless steel / Brass / Thermoplastic |
| Panel Input Power | 300 W – 4000 W (based on motor size) |
⚙️ 3. Features
Direct connection to solar PV panels
No fuel cost; eco-friendly
Can include MPPT controller for optimized performance
Compatible with drip or sprinkler systems
🛠️ 4. Applications
Agricultural irrigation
Livestock watering
Water transfer from storage to field
