💡 KEY FEATURES & BENEFITS

• 💧 Precision Flow Control: Delivers a consistent and uniform water flow directly to the root zone of crops and plants.

• 🛡️ Self-Flushing & Anti-Clogging: Built-in turbulent flow path mechanism prevents sediment and debris accumulation inside the emitter.

• ☀️ UV & Chemical Resistant: Manufactured from high-grade polymers designed to withstand harsh outdoor sunlight and fertilizer exposure (chemigation).

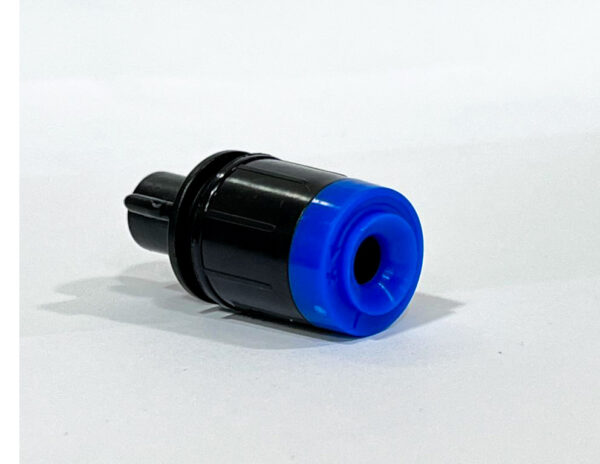

• 🔧 Removable Cap Design: Features a detachable top cap for fast inspection, easy cleaning, and effortless maintenance.

• 🌿 Flexible Installation: Easily punches into standard PE drip lines or connects to micro-tubing outlets.

📐 TECHNICAL SPECIFICATIONS

Parameter	Specification	Units
Material	Polypropylene (PP) & Engineered Plastic	–
Flow Rates Available	4.0 / 8.0 / 16.0	L/h (Liters per hour)
Operating Pressure Range	0.5 – 3.0	bar
Inlet Connection	4mm Punch / Barb Connection	mm
Water Temperature Range	Up to 50	°C
Filtration Requirement	120 Mesh (130 Micron)	Mesh / Micron

🚜 APPLICATIONS

• 🌴 Orchards & Tree Crops (Olives, Palms, Fruit Trees)

• 🥦 Greenhouses & Row Crop Farming

• 🏡 Residential Landscaping & Garden Beds

• 🪴 Commercial Container & Pot Cultivation

⚙️ INSTALLATION GUIDE

1. 📍 Punching: Use a standard 3mm or 4mm hole punch to pierce the main Polyethylene (PE) supply pipe.

2. 🔌 Insertion: Insert the barbed end of the drip emitter firmly into the punched hole until secure.

3. 🚿 Maintenance: Unscrew the blue top cap periodically to flush out any fine particles or organic buildup.
