2. Main Components
-

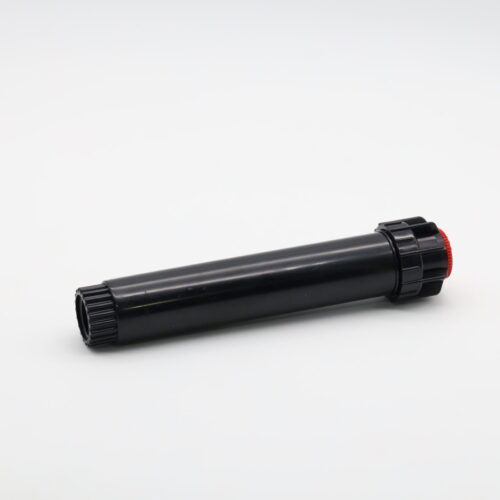

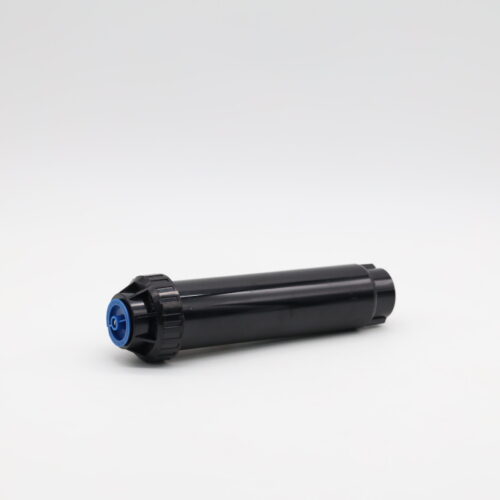

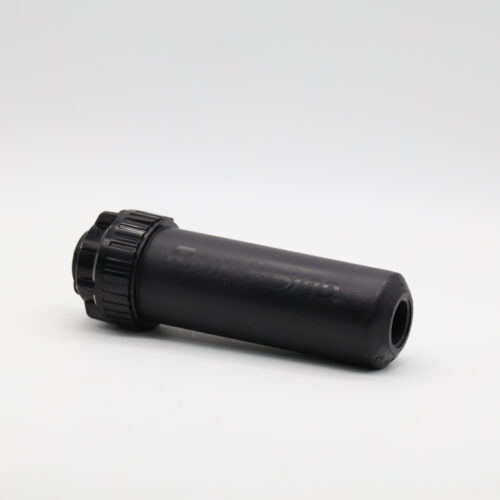

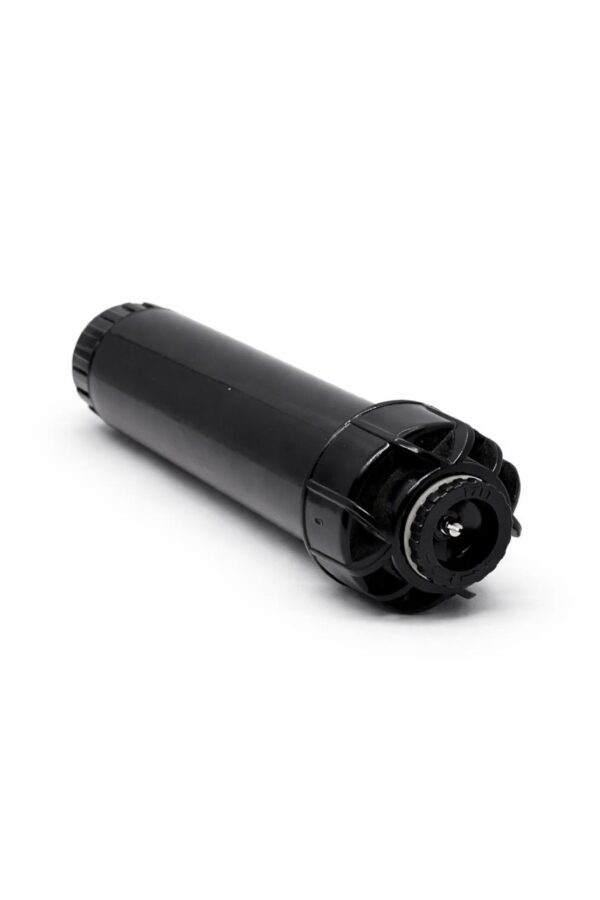

Outer Body: Durable cylindrical housing installed underground.
-
Riser/Stem: The internal shaft that pops up when water flows.
-
Nozzle: Controls spray pattern, radius, and flow rate.
-
Seal & Wiper: Prevents dirt from entering and ensures smooth movement.
-
Spring Mechanism: Retracts the sprinkler back into the body after watering stops.
-
Filter Screen: Protects nozzle from clogging.
3. Working Principle
-
Water pressure enters through the inlet.
-
Pressure pushes the internal riser upward.
-
The nozzle sprays water in a preset pattern.
-
When water stops, the spring pulls the riser back down.
4. Spray Pattern Options
Depending on the installed nozzle:
-
Full circle (360°)
-
Half circle (180°)
-
Quarter circle (90°)
-
Adjustable arc
-
Strip or rectangular patterns
-
Key Features:
- 🔩 Connection: 1/2″ or 3/4″ BSP/NPT threaded inlet
- 🌊 Spray Type: Compatible with fixed or adjustable nozzles (sold separately)
- 🧱 Material: UV-resistant polymer with reinforced seals
- 🔧 Mechanism: Spring-loaded pop-up stem for smooth operation
- 🌿 Applications: Lawns, gardens, parks, and commercial landscapes
- 🏷️ Design: Low-profile body with durable construction
